The TYPHON TERROR X2 MAX is a space-saving, adaptable mini excavator made for confined areas and precision work in residential, landscaping, and small construction jobs. With a 2.7 Ton operating weight and a slim 41.7 in body width, it provides strong stability and easy access to narrow job sites. It provides a maximum digging depth of 9.56 ft, 360° body swing, and a 16.9 in bucket for productive and accurate excavation. Fitted with a Danfoss traveling motor and a 2.47 cu ft bucket capacity,…
The TYPHON TERROR X2 MAX is a compact-footprint, multi-purpose mini excavator created for restricted spaces and precision work in residential, landscaping, and small building projects. With a 2.7 Ton operating weight and a slim 41.7 in body width, it offers steady balance and easy access to narrow job sites. It delivers a maximum digging depth of 9.56 ft, 360° body swing, and a 16.9 in bucket for effective and accurate excavation. Outfitted with a Danfoss traveling motor and a 2.47 cu ft bucket capacity, it handles trenching, drainage, foundation work, and material moving with capable and dependable output. Built with a 23.2 HP Yanmar 3TNV88F diesel engine and supported by a 4.23 gal fuel tank and 5.81 gal hydraulic tank, the machine combines power, operating performance, and extended service strength. Operator-friendly offers such as a safety lock, swing boom, track telescope switch, LED lighting, intuitive controls, and a 2.11 MPH travel speed promote safe, precise, and effective operation on any job-site.

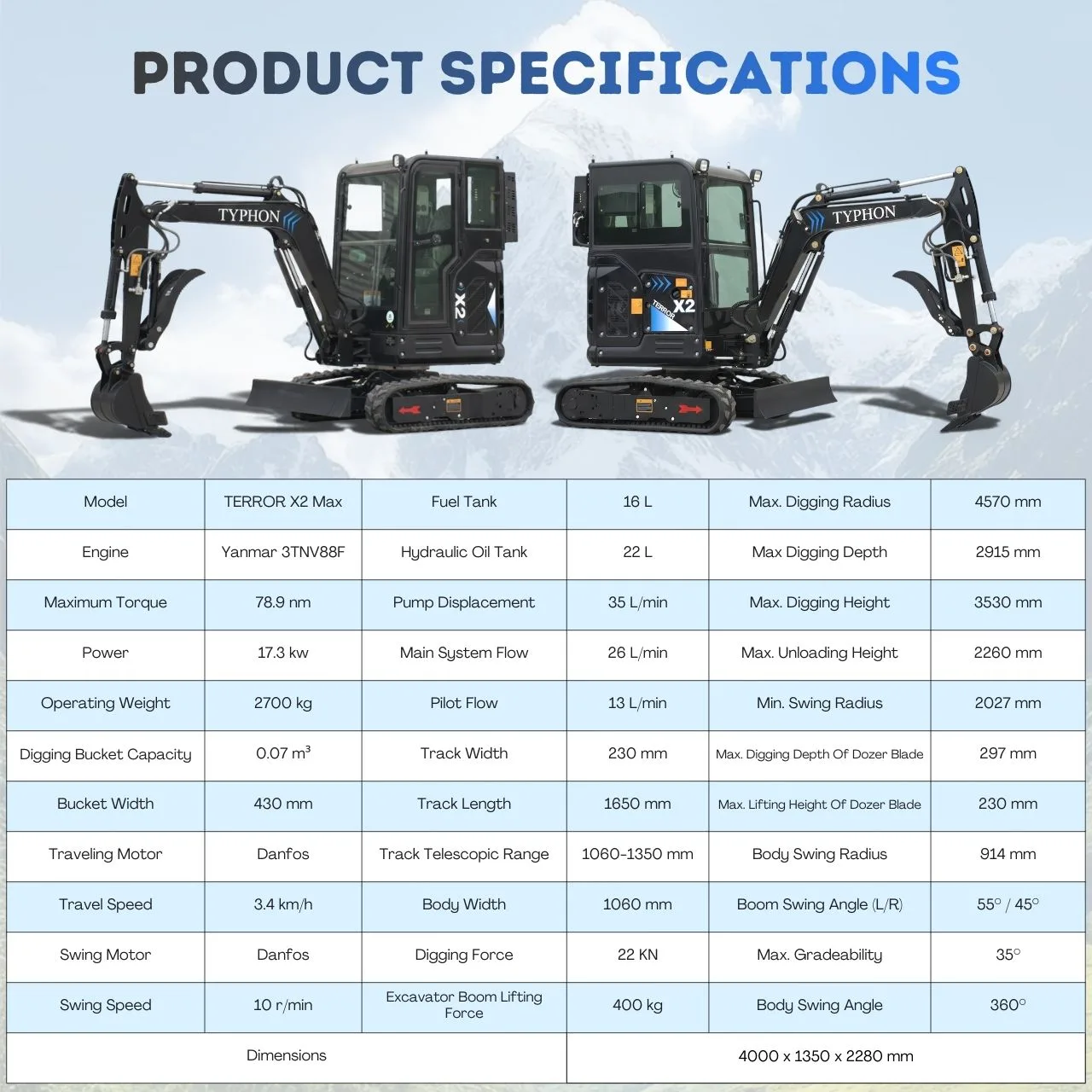

The TYPHON TERROR X2 MAX is made for precision work in confined environments, including residential sites, landscaping projects, utility trenches, and small construction zones. Its compact-footprint size and 41.7 in body width promote easy access through narrow pathways while maintaining steady balance. Strong digging performance is provided by a 9.56 ft maximum digging depth, 14.99 ft digging radius, and 7.41 ft maximum unloading height. The 16.9 in bucket width promotes controlled excavation with high accuracy. A full 360° body swing, tight swing radius, and boom swing angle of 55° left and 45° right promote refined operation in restricted spaces. The created for years undercarriage offers 9.1 in wide tracks with a 65 in track length for consistent traction and balance. An integrated dozer blade raises grading and stability, delivering a 11.7 in digging depth and 9.1 in lifting height. Overall dimensions of 157.5 × 53.1 × 89.8 in make transportation and storage simple and effective.
Made to handle a many different tasks, the TYPHON TERROR X2 MAX offers operating performance and reliability across different working conditions. The Danfoss traveling motor promotes smooth travel and precise control on varied terrain. With an excavator boom lifting force of 882 lb, a digging force of 4,946 lbf, a main system flow of 6.87 GPM, and a travel speed of 2.11 MPH, the machine combines strength with agility. Its 2.47 cu ft bucket capacity is well-suited for trenching, landscaping, drainage, foundation work, and material moving. The machine also promotes multiple attachments, enabling digging, trenching, lifting, breaking, and site cleanup. This versatility promotes one compact-footprint machine to complete multiple tasks efficiently, saving time, space, and operating costs.
The TYPHON TERROR X2 MAX combines compact-footprint dimensions with dependable power for demanding work in limited spaces. It is built with the Yanmar 3TNV88F diesel engine, producing 23.2 HP (23.2 HP@ 2200rpm) of effective, low-emission performance. Its 1.642-liter, 3-cylinder inline design offers refined operation, strong torque, and excellent fuel economy through direct injection and natural aspiration. The hydraulic system offers a 3.43 GPM pilot flow and a high-quality Danfoss swing motor, offering smooth rotation at a 10 r/min swing speed. A 16-liter fuel tank and 22-liter hydraulic oil tank promote long working hours with fewer refueling interruptions. The telescopic undercarriage with a track range of 1,060–53.1 in raises stability during operation while maintaining compact-footprint access when needed. Simplified maintenance and well-positioned lubrication points enhance durability and long-term productivity.
This TYPHON TERROR X2 MAX is created for operator comfort, safety, and ease of use. Pilot and full hydraulic controls promote smooth, precise operation for digging, lifting, and positioning tasks. A built-in safety lock system enables immediate machine shutdown when engaged, reducing the risk of accidental operation. Switch buttons for the swing boom and track telescope functions promote quick adjustments without interrupting workflow. The AC/heater cabin with an openable front window promotes operator comfort in all weather conditions, while bright LED lights raise visibility in low-light environments. An intuitive control panel places all essential functions within easy reach, minimizing learning time and improving operating performance. With a 2.11 MPH travel speed, the TERROR X2 MAX moves smoothly around the job-site, reducing repositioning time and keeping projects on schedule.
✔ Yanmar 3-Cylinder Diesel Engin
✔ Retractable Undercarriage (1,060–53.1 in)
✔ Cabin using A/C & Heater
✔ Pilot Control System
✔ Boom Swing Function
✔ 360° Full Rotation
✔ Fully Hydraulic System Control
Customer Assurance: We offer responsive service and consistent parts promote to promote your machine runs smoothly for years.
Performance You Can Trust: Every TYPHON excavator remains built using premium components for durability, performance, and operator safety.
Global Reliability: Trusted by contractors and builders across This USA and beyond for offering consistent quality and operating performance.
Your building projects will reach new heights with the TYPHON Terror X2 Max Mini Excavator. compact-footprint, tough, and effective, this trench digger machine is your ideal companion for successful projects at a mini scale. Trust TYPHON Machinery for reliability, toughness, and performance that surpass expectations. Elevate your construction game with the TYPHON Terror X2 Max- The ultimate solution for all your excavation needs!
